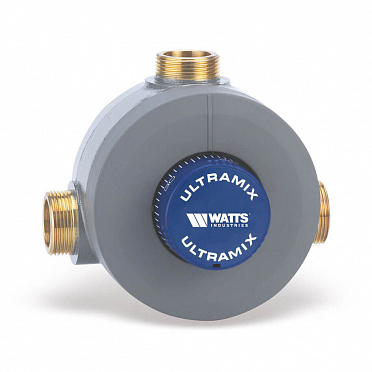

Watts Eurotherm TX91E 20mm Themostatic Mixing Valve
Product Code:
TR91E
Product Enquiry

Enquire about this product below

To prevent automated spam submissions leave this field empty.
To prevent automated spam submissions leave this field empty.

Tabs

Overview

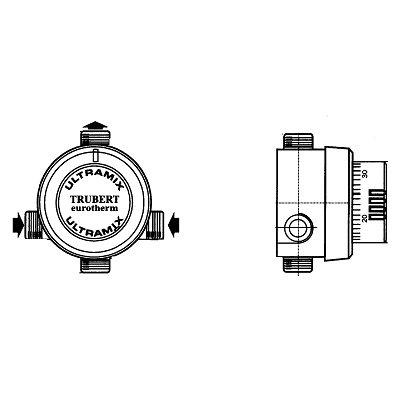

Watts Eurotherm thermostatic mixing valves are for community installations such as swimming pools, sports centres, schools, factories, camping sites, hospitals, spas, etc. which allow controlling and holding of the mixed water temperature at a constant level also in the presence of variations in pressure (max. 1.5 bar). Brass body. Cover with grey epoxy finish and blue graduated knob (Type E). Chrome-plated cover with white graduated knob (Type C). Anti-seize mechanism with filters and check valves. Bimetal steel strip coated with rilsan to protect against scale formation. Temperature setting range: 30-70 °C with provision for locking. Anti-scald protection : water shut off in less than 2 seconds in the event of cold water missing. Max. operating pressure : 10 bar. Max. hot water temperature : 85°C. Flow rates guaranteed with upstream dynamic pressure : 3 bar Hot water inlet provided on the left, mixed water outlet at the top. Min. difference in inlet/outlet temperature : 5°C

Flow rate: 3 - 56L/min

8x AVAILABLE

CONTACT: Andrew Chaney
PHONE: 0274750012
EMAIL: andrew@macdonaldindustries.co.nz
