RAK Compact Medical Wall Hung Basin

Product Code:

RA-CO2100HP55

Product Enquiry

Tabs

Overview

The Compact Medical basin range have slender dimensions and suit healthcare facilities where no overflow is required and comes in options with or without tap hole.

Compact medical is available in 450mm, 500mm, 550mm basins, 380mm and 500mm horizontal basins, and 510mm Integrated trap basin formats, all available with or without tap hole.

Colour: Alpine white only.
Tap holes: No tap hole, 1 tap hole.
Waste outlet: For 32mm waste (not included). Refer separate literature for waste and trap options.

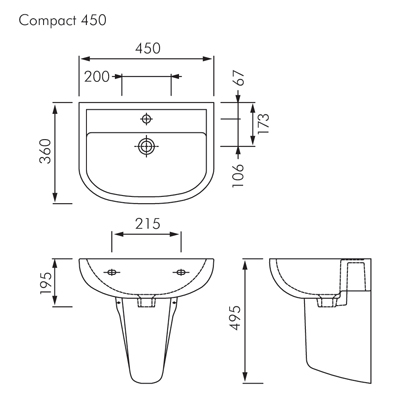

Basin size: Compact 550 Basin: 545 x 410mm, Compact 450 Basin: 450 x 360mm
Overflow: No overflow only.
Fixing: FS31SL wall fixing kit included.
Dimensions: All dimensions in mm. Tolerance ±5% for below 200mm and ±3% above 200mm.

Models

RA-CO2100HP55 - RAK Compact 550 wall hung basin without overflow, no tap hole.
RA-CO2110HP55 - RAK Compact 550 wall hung basin without overflow, 1 tap hole.

RA-CO2100HP45 - RAK Compact 450 wall hung basin without overflow, no tap hole.
RA-CO2110HP45 - RAK Compact 450 wall hung basin without overflow, 1 tap hole.
