RAK Phoenix Wall Hung Urinal
Product Code:
RA-PH3100 / RA-PH3200
Product Enquiry
To prevent automated spam submissions leave this field empty.

Tabs

Overview

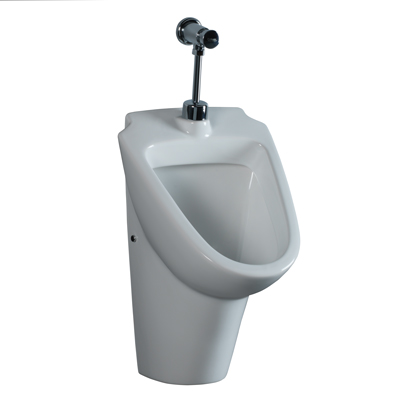

The Phoenix wall hung urinal is a timeless design that will suit all bathrooms. The Phoenix is available with both rear inlet & top inlet water connections, and has a concealed waste trap.

Care should be taken to ensure correct flushing volumes are maintained to ensure complete hygiene and complete rinsing of waste pipes.

Colour: White only.
Inlet connection: ½" BSP inlet connector included with RA-PH3200. RA-PH3100 requires flush valve connection pipe to be supplied with valve set. Refer  Installation instructions for details.
Waste outlet: Waste trap included. Plumber to install Ø50 waste (socket end to urinal) pipe in wall.
Water pressure range: 100-500kPa.
Fixings: FS37UK fixing kit included.

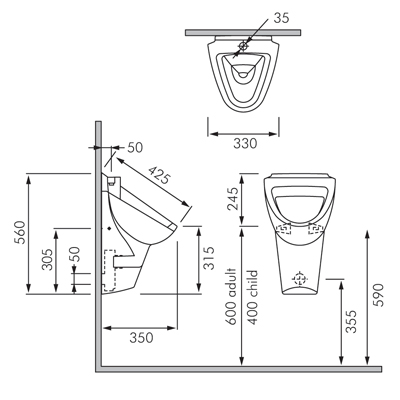

Dimensions: All dimensions in mm. tolerance ±5% for below 200mm and ±3% above 200mm.
Flushing: Refer separate literature for our RAK electronic flush valves , Delabie flush valves and Zurn flush valves.
