Delabie Securitherm Bioclip Thermostatic Basin Mixer

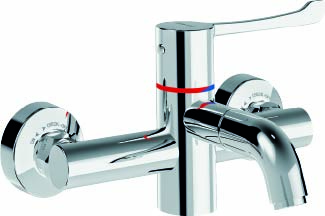

DELABIE DEH9614P Securitherm is a wall mounted thermostatic single control basin mixer with smooth interior and Bioclip removable spout. Securitherm thermostatic mixer taps ensures immediate hot water shut off if the cold water supply fails. If the hot water fails the mixer also shuts off. Securitouch thermal insulation prevents burns to the user. The BIOCLIP spout can be removed entirely from the tap body allowing for curative or preventative cleaning/disinfection to eliminate Biofilm and bacteria. Straight spout L.200mm with hygienic flow straightener for no impurity retention. Mixers with smooth interiors have 14x less Biofilm contamination than mixers with standard rough interiors. Flow rate limited to 7L/min at 300kPa. Operating pressure is 100-500kPa, 300kPa is recommended. Easy to use hygienic control lever L.146mm. Temperature is limited to 40°C but is adjustable by the installer to the buildings’ required maximum temperature. Supplied with 2x M1/2” in-line stop wall connectors. Also available with longer spout L.252mm (see models). Spout can also be replaced with a BIOFIL filter (see separate BIOFIL literature).

INSTALLATION

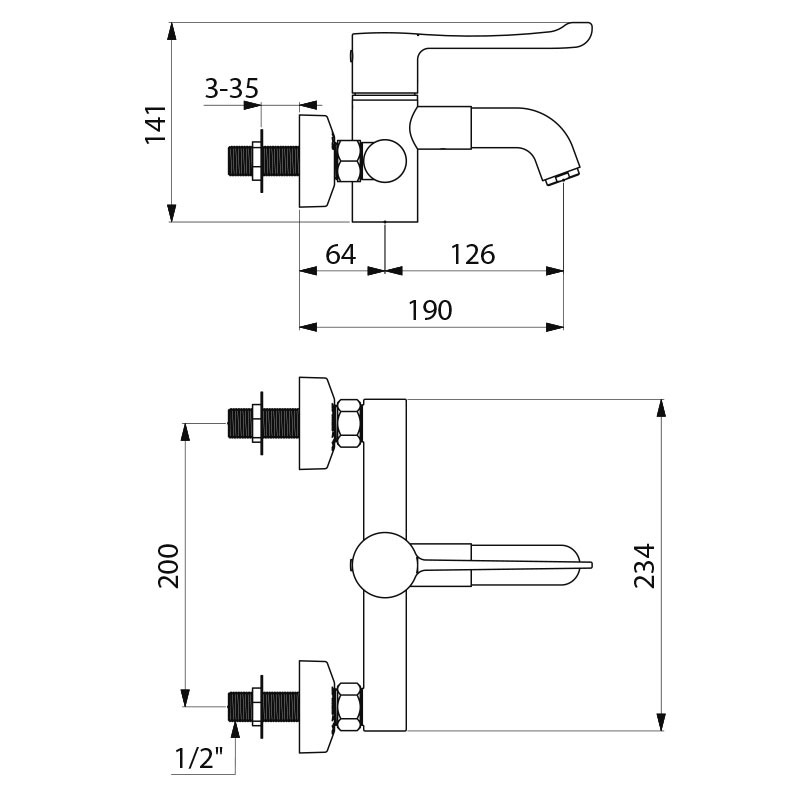

• Wall mounted 200mm centres with M1/2” in-line stop wall connectors.
• Spout can be removed entirely from the tap body for curative or preventative measures in healthcare facilities
• Flow rate limited to 7L/min at 300kPa.
• Anti-scalding failsafe, Hot water shuts off immediately if cold water fails
• Temperature limit set to maximum 40°C (is adjustable by installer)
• Minimum 15OC difference between HW and MW.
• Maximum 15% pressure differential between HW and CW.
• Thermal & chemical shocks are possible with this mixer tap
